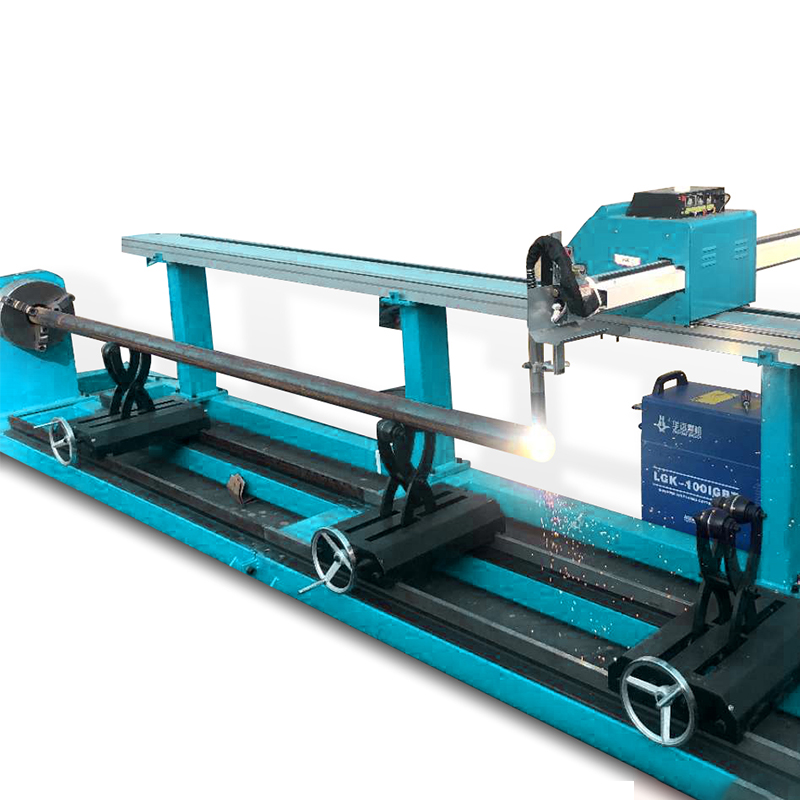

Portable cnc pipe cutting machine for Plate and Pipe

Products Details

Summary information:The transverse effective cutting is 1500mmx3000mm,the cnc pipe cutting machine adopts aluminum alloy guide rail and single side drive. cnc pipe cutting machine can be equipped with flame and plasma cutting torch automatic elevation system according to user's requirements. image001 cnc pipe cutting machine for plate and pipe can cut steel, stainless steel, cast iron pipe, etc., applicable to natural gas pipelines, oil pipelines, city gas pipelines, large diameter chemical, water pipelines. image002 image003 1. The transverse effective cutting is 1500mmx3000mm, cnc pipe cutting machine for plate and pipe adopts aluminum alloy guide rail and single side drive. 2. cnc pipe cutting machine for plate and pipe can be equipped with flame and plasma cutting torch automatic elevation system according to user's requirements. 3. cnc pipe cutting machine for plate and pipe main function features include: the control system adopts industrial computer, which can accept the import of external processing program, and timely graphic tracking when cutting. 4. cnc pipe cutting machine for plate and pipe, small size, light weight, suitable for outdoor operation, low energy consumption, simple operation without drawing 5. cnc pipe cutting machine for plate and pipe can Inside and outside, "X" bevelling , for the center of the spiral steel or bad pipeline has strong adaptability 6. Double sprocket structure, longer life, flexible spiral steel track for surface roughness, deformed steel has strong adaptability 7. cnc pipe cutting machine for plate and pipe can manually adjust cut directed groove . image004 image005

Technical Parameters

Machine Voltage

Signal phas 220V ,50HZ

Plasma power Voltage

380V 3 Phase,50HZ

Cutting mode

Plasma+Flame

Effective cutting range(mm)

1500*3000mm or 1500*8000mm

Cutting speed

50-3500mm/min

Plasma power

Huayuan LGK-100A 120A/200A/300A or Hyperthem 80A/105A/125A

Plasma cutting thickness

According to power source models

Auto-precision

±0.2mm/m

Cutting torch lifting distance

200mm

Longitudinal linear precision

±0.2mm/10m

Emergency stop

Yes

Relative humidity

<95% No condensing

Nesting software

ProNest8(standard) or Starcam
image006 cnc pipe cutting machine for plate and pipe usually adopt one flame torch, suitable for 6~150mm of carbon steel. We can also add one plasma torch for you, the cutting thickness and speed is according plasma power brand and model: image007

Model

Recommend thickness

Cooling Method

Hyperthem Powermax 105A

1~20mm

air cooling

Hyperthem Powermax 125A

1~23mm

air cooling

Hyperthem Maxpro 200A

1~25mm

water cooling

Hyperthem XPR 300A

1~35mm

water cooling

Huayuan LGK-100A

1~12mm

air cooling

Huayuan LGK-120A

1~14mm

air cooling

Huayuan   LGK-200A

1~25mm

water cooling

Huayuan   LGK-300A

1~35mm

water cooling

image008 1)cnc pipe cutting machine with full Chinese/English menu system 2) cnc pipe cutting machine has 45 kinds of common graphics libraries (including grid graphics), which can choose to set the chip size and hole size.   3) cnc pipe cutting machine can support EIA code (G code) and FastCAM, FreeNest, SmartNest, IBE and other suite software.       4) cnc pipe cutting machine can graphic proportions, rotation, mirroring.     5)cnc pipe cutting machine’s graphics can be arranged in matrix, interactive and overlapping ways.   6) cnc pipe cutting machine has graphic steel plate correction, any steel plate edge can be used as correction edge. 7) The front-end U-disk interface facilitates program transmission.   8) The system upgrade adopts U disk upgrade mode, which is convenient, simple and practical, and provides lifelong free upgrade service Company Introduction image009 image010 image011 image012 image014 image013 image015 image016 The Exhibition image017 image018

After Sales Service

1. One year warranty for cnc pipe cutting machine. 2. We have experienced after-sales service team,we can send installation video or file to customers and guide installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines. 3. Full stock of spare parts and consumables are at competitive price.

FAQ

1. What kinds of after-sales service can your company supply? One year's warranty for whole cnc pipe cutting machine. We will send spare parts for free during warranty period. About main board, we can supply life long service. 2. Can you supply OEM Service? Yes, we can supply OEM service.

2. What is deliver time? We will delivery the goods within 15-20 work days after received payment.

4. What is your payment term? We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.
