Factory supply industrial type 3 axis cnc tube cutter

Products Details

Product Description

Type 3 axis cnc tube cutter

The type 3 axis cnc tube cutter is a device that automatically calculates and cuts the joints of the ends of steel pipes. The cnc tube cutter only needs to input the parameters such as the radius and intersection angle of the pipes, and the cnc tube cutter can automatically cut the pipe's intersecting lines and intersecting holes.  YM-XY3 cnc tube cutter adopts cylindrical coordinate coefficient control, and the number of control axis is 3 axes. With parameter input and man-machine dialogue function, pipe roundness and eccentricity compensation function, cutting speed change automatic control function, etc.

image001image002 image003 image004

Product Details

The cnc tube cutter is mainly composed of control system, arm system, driving device, clamping device, supporting device, guide rail, gas path system, control cabinet and other parts. Equipped with a plasma cutting system as the main cutting system.


Head stock of the cnc tube cutter

Adopt steel plate tailor-welded box structure design, compact structure to improve overall rigidity and strength, each component installation surface is processed by CNC machining center at one time, to ensure the rotation running accuracy and machine bed verticality.

upright column of the cnc tube cutter

The upright column is mainly composed of a plate tailor-welded main body, a TBI linear guide rail, a screw and a quadrilateral connecting rod groove device. The plate tailor-welded main structure is precisely processed by a CNC machining center to ensure the stability and positioning accuracy of the cutting torch.


Chuck of the cnc tube cutter

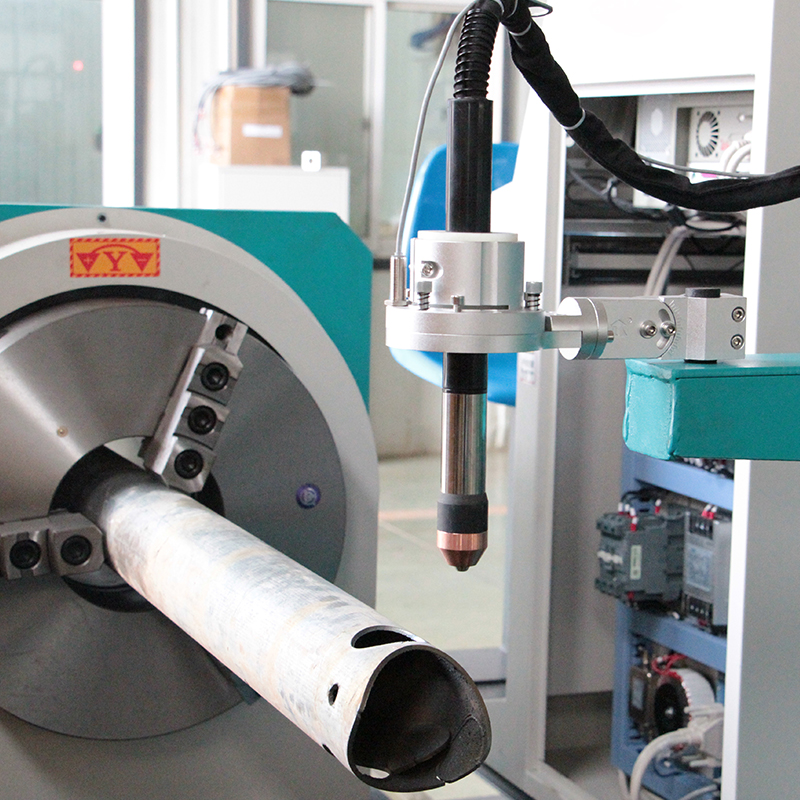

Tree jaw chuck,360°free rotation


Rail of the cnc tube cutter

Working stable and smoothly


Product Paramenters

Mode

KR-XY3 cnc tube cutter

Cutting range

6m 9m 12m( customized )

Machine size

7800*1800*1650mm( customized )

Cutting method

Flame/plasma

Flame cutting speed

20—700mm/min

Plasma cutting speed

500-3500mm/min

Control system

Advantech industrial computer

Plasma Max. hole thickness

14mm

Plasma Max. edge cutting thickness

18mm

Plasma torch anti-collision system

yes

Driving mode

servo

Working condition

Working pressure of compressed gas

Above 7mpa

Required gas flow of plasma

4500L/H

Working environment

Ventilation, no concussion

Power wattage

5KW

Types of gas

Acetylene propane
